8 Valve Engine And Gearbox Removal
« on: May 10, 2009, 18:10:06 PM »
Maybe not the most profesional of jobs but here is my short guide to removing an 8v engine and gearbox

May help someone  :)


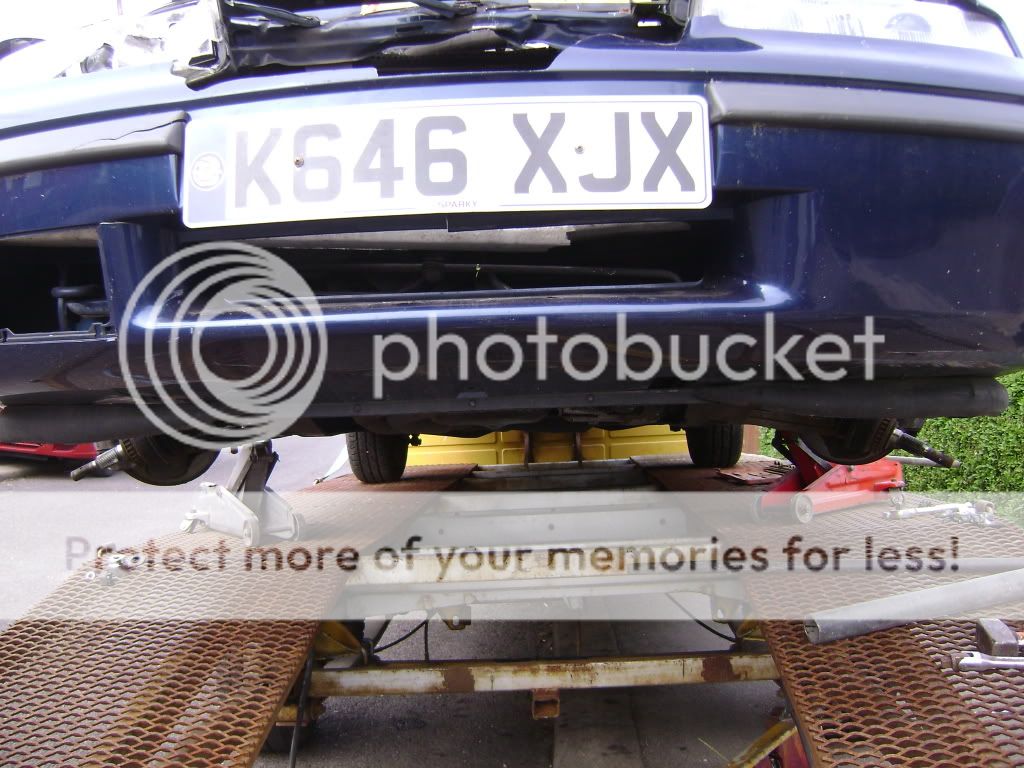

Firstly jack the front of the car up and remove the wheels



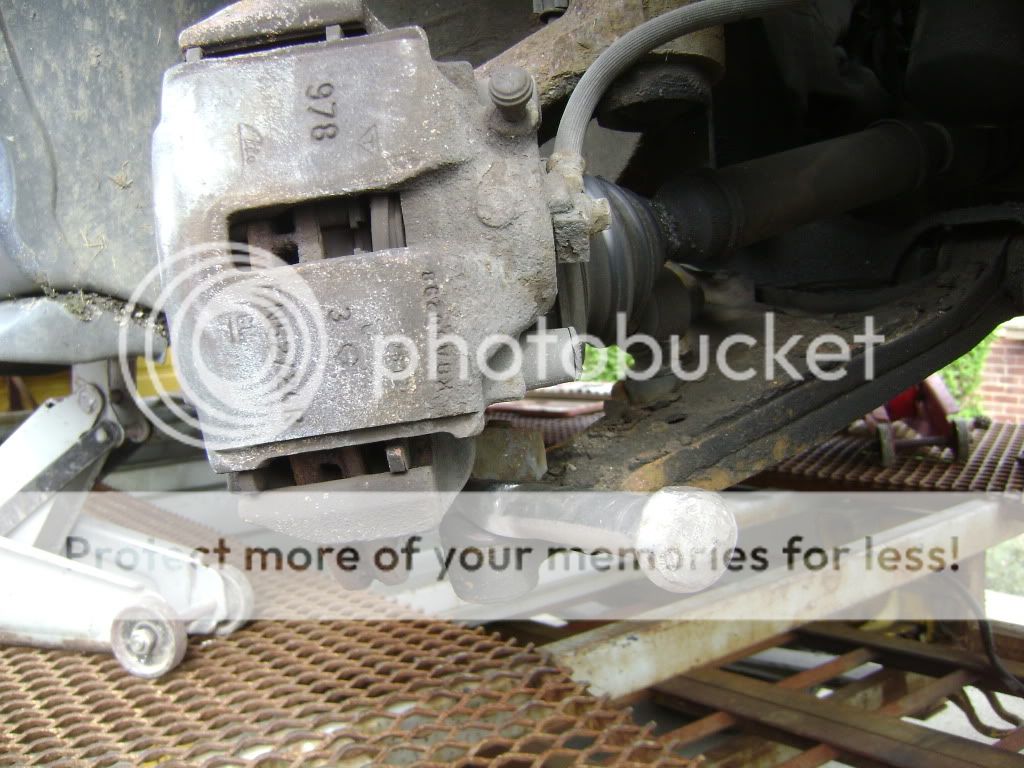

Next pull out the split pin on the castle bolt and remove the bolt (both sides) you will need a deep 30mm socket for this




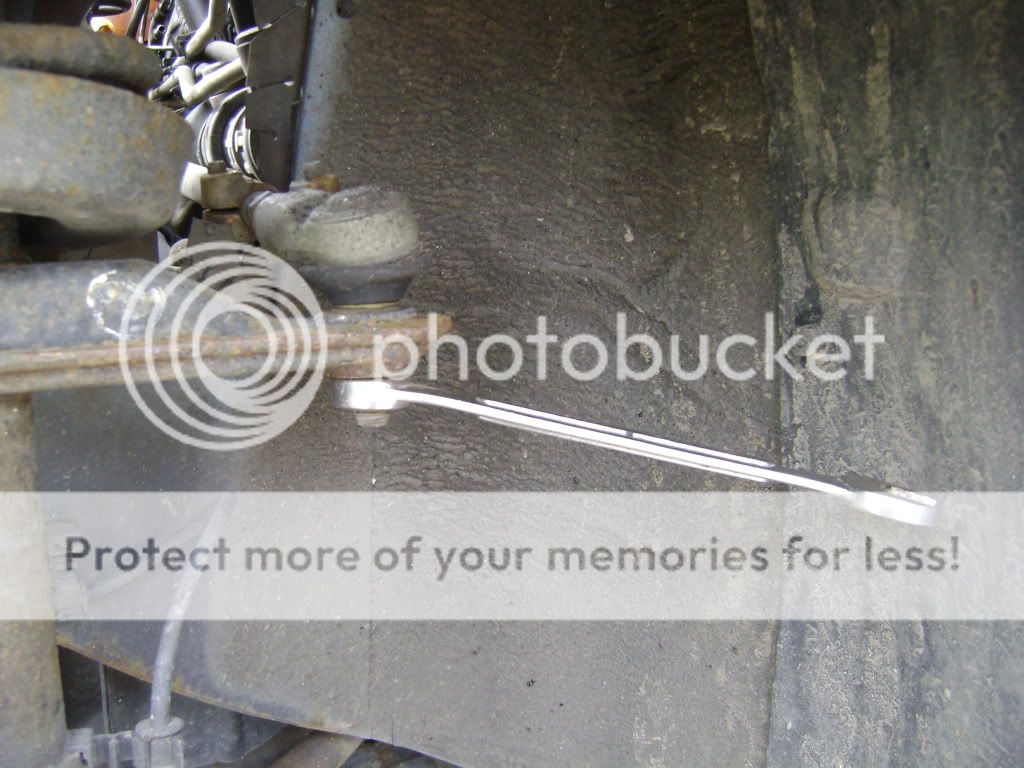

Next remove the nut from the bottom ball joint and from the track rod end (both sides) 18mm spanner





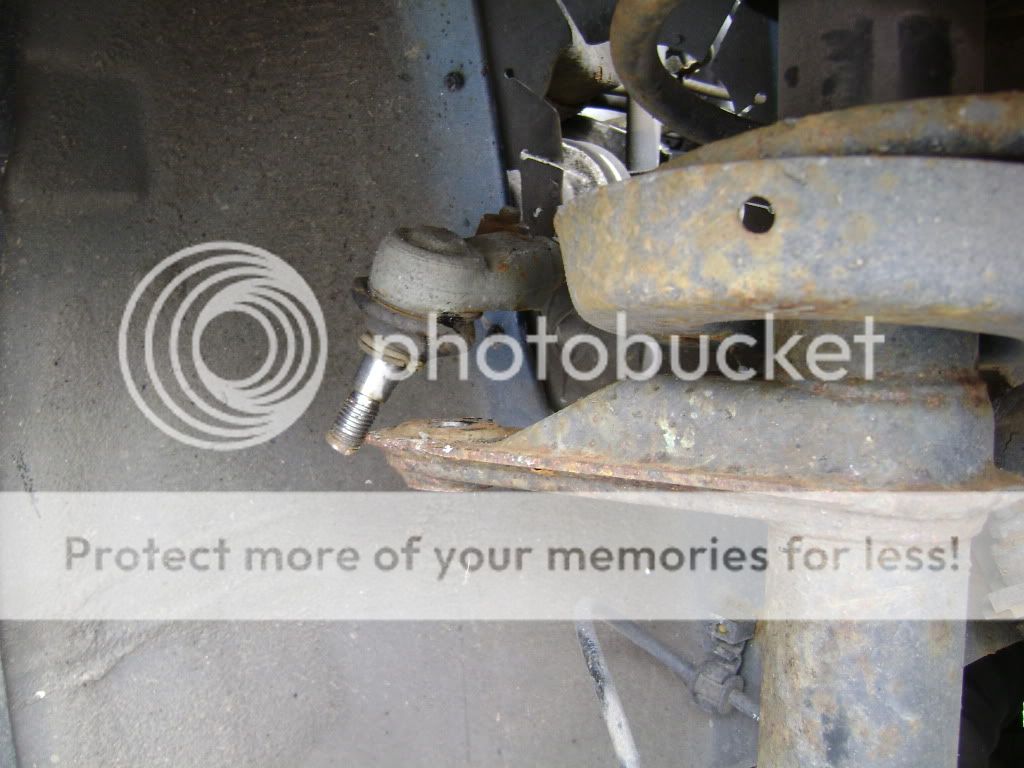

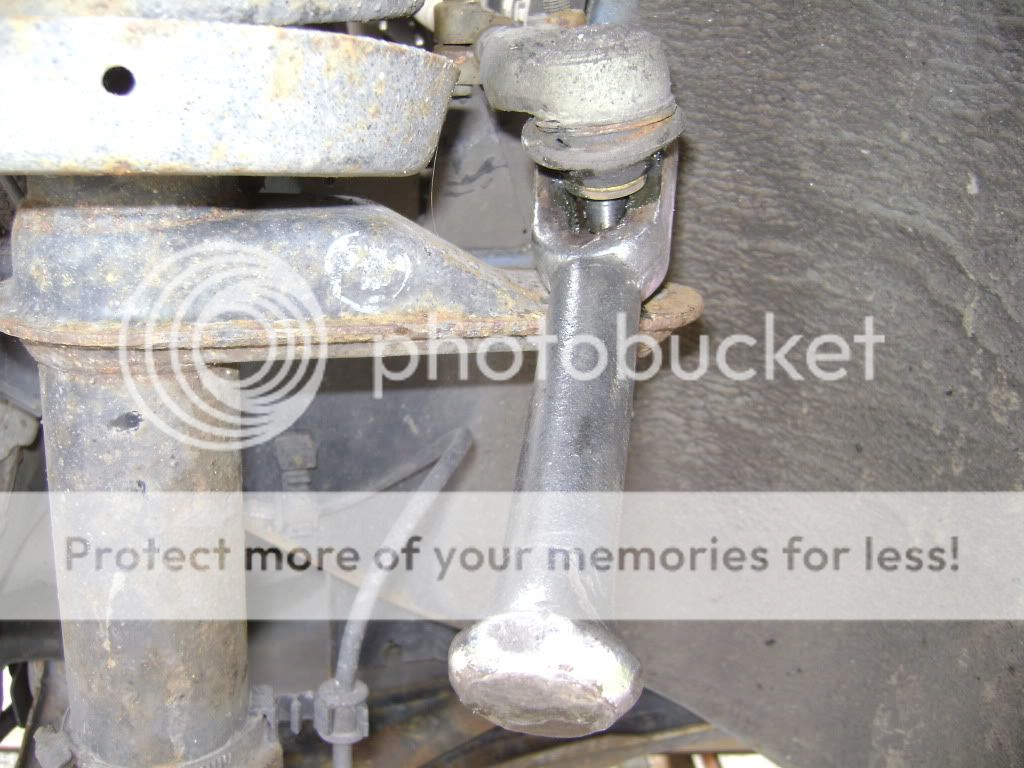

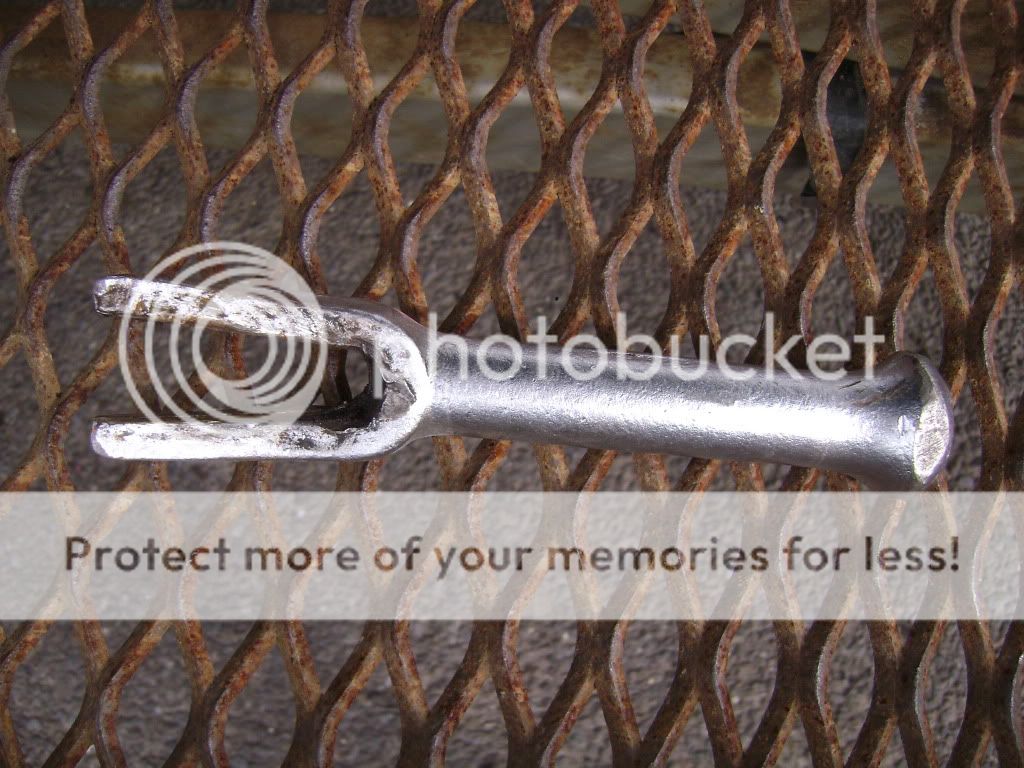

Once removed get your ball joint splitter and split the bottom ball joint and track rod end ball joint (both sides)














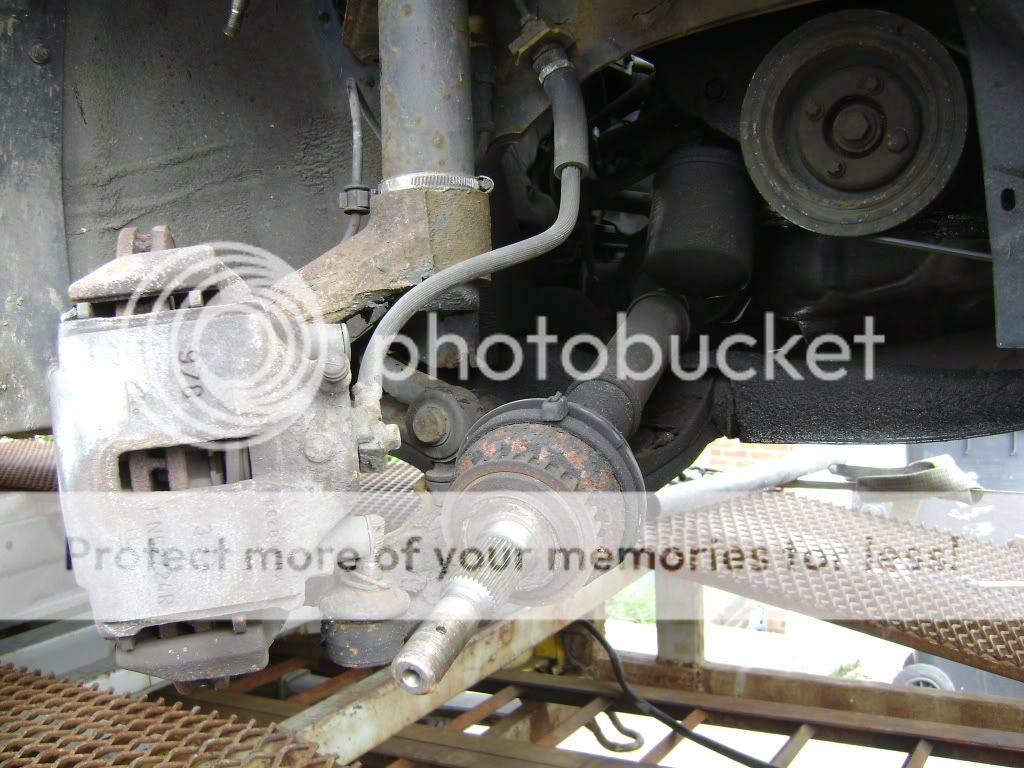

Now pull the hub forward to release the driveshaft (both sides)





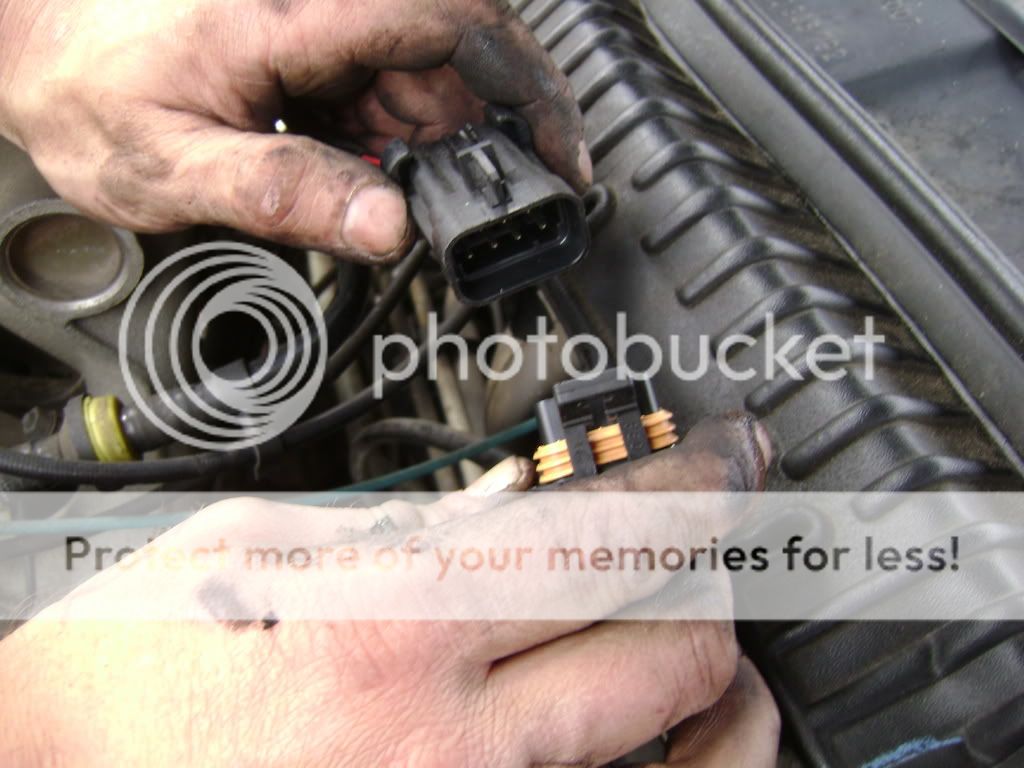

Now you need to disconect all the wires pipes and cables under the bonnet there is no need to cut anything, you need to disconect everything that connects the engine and box to the car remember to drain the power steering fluid before disconecting the pipes





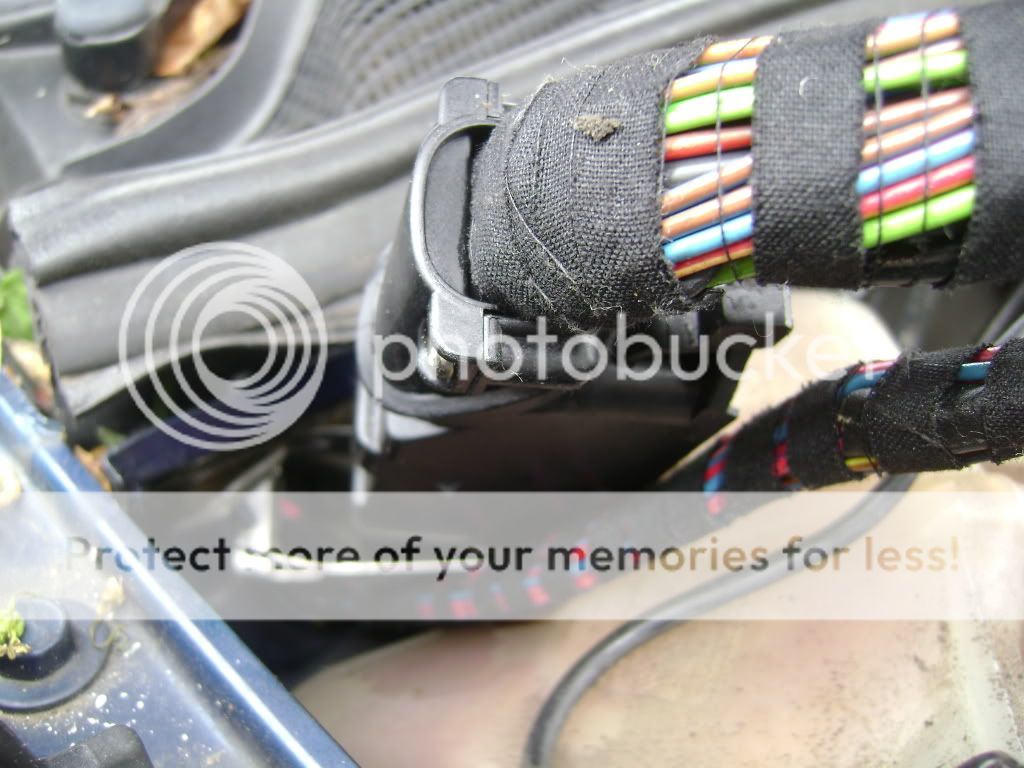

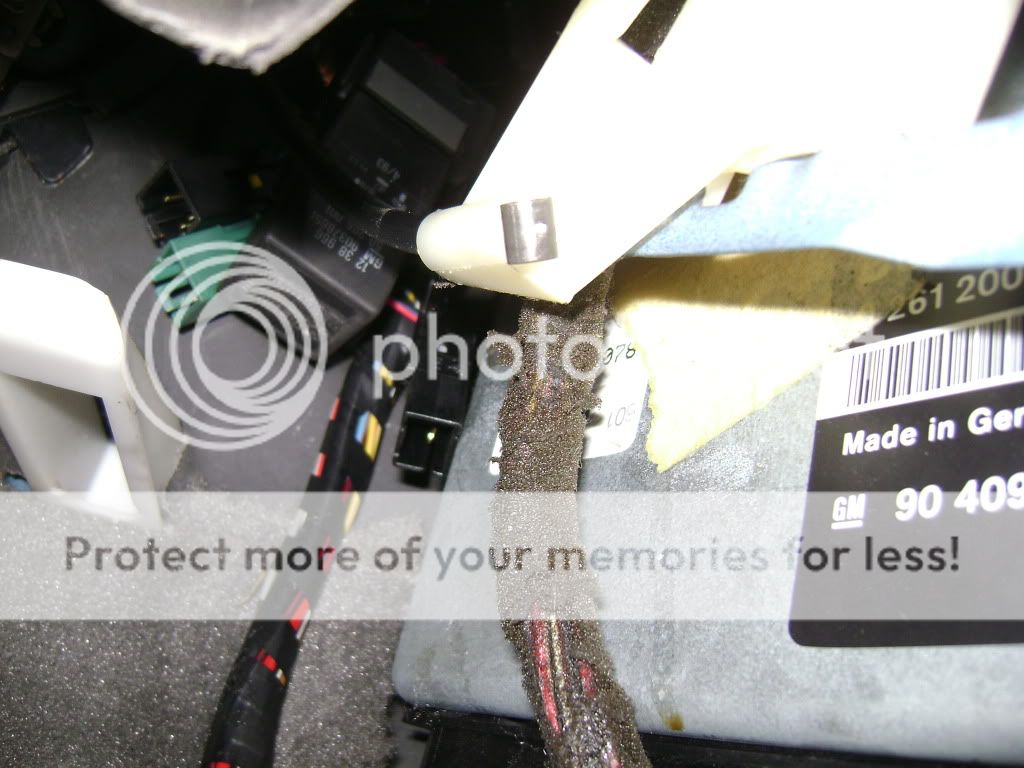

You will need to disconect the wiring loom from the ecu which is located under the drivers footwell to the right hand side





Then feed it out through the gromit in the bulk head




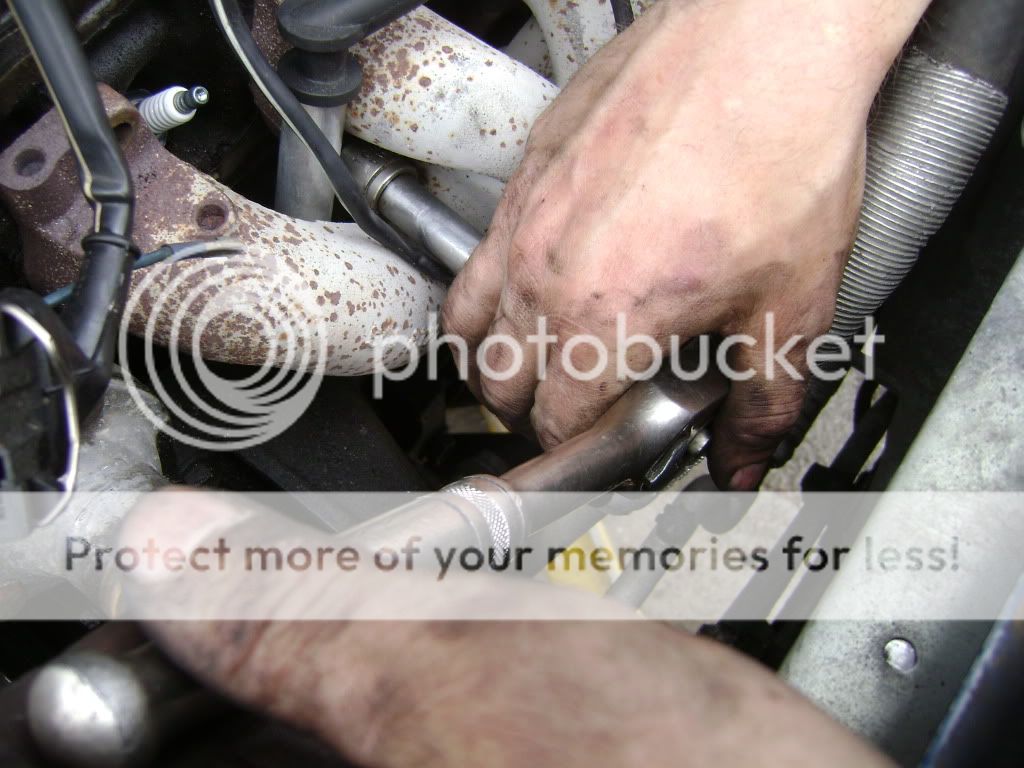

Next disconect the manifold 13mm nuts





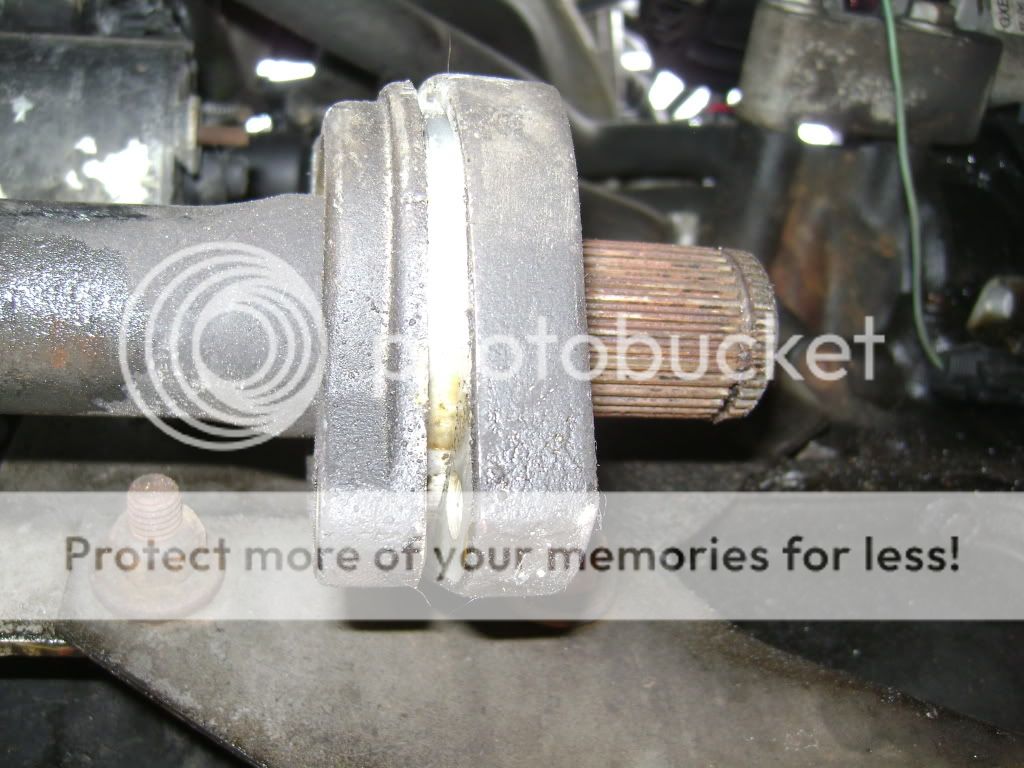

Now drain the gearbox oil and split the drivers side driveshaft at its joint




And remove the bracket that holds it in place 15mm bolts

Then remove the driveshaft on the n/s from the gearbox this can be done easily with a flat ended bar

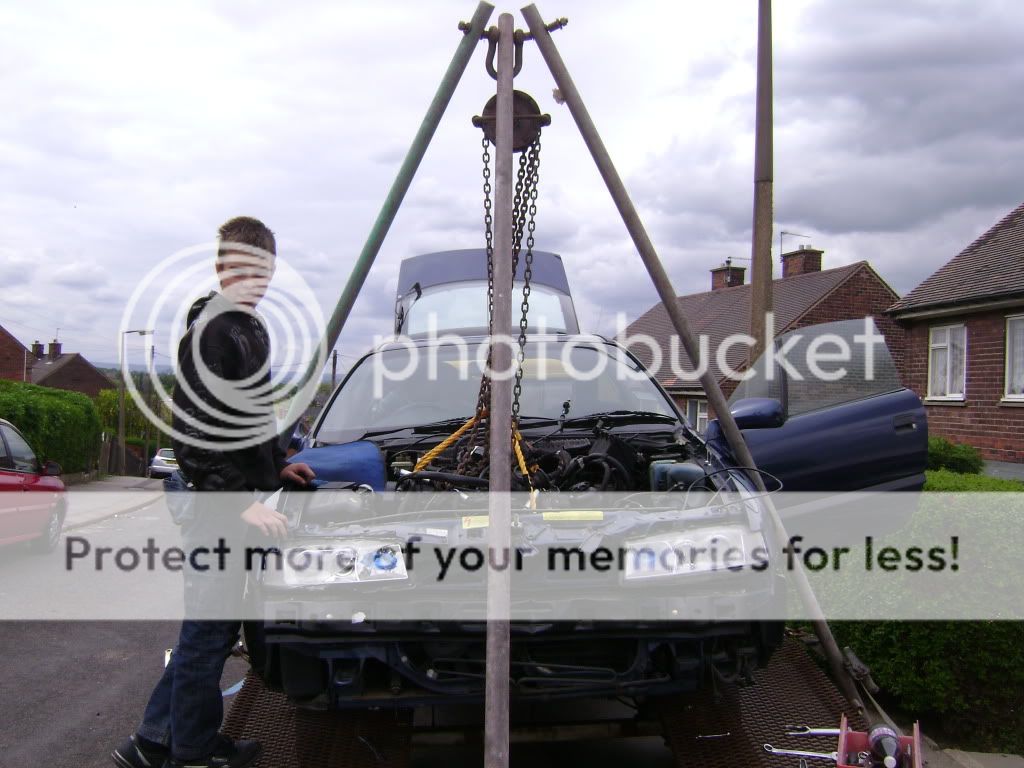

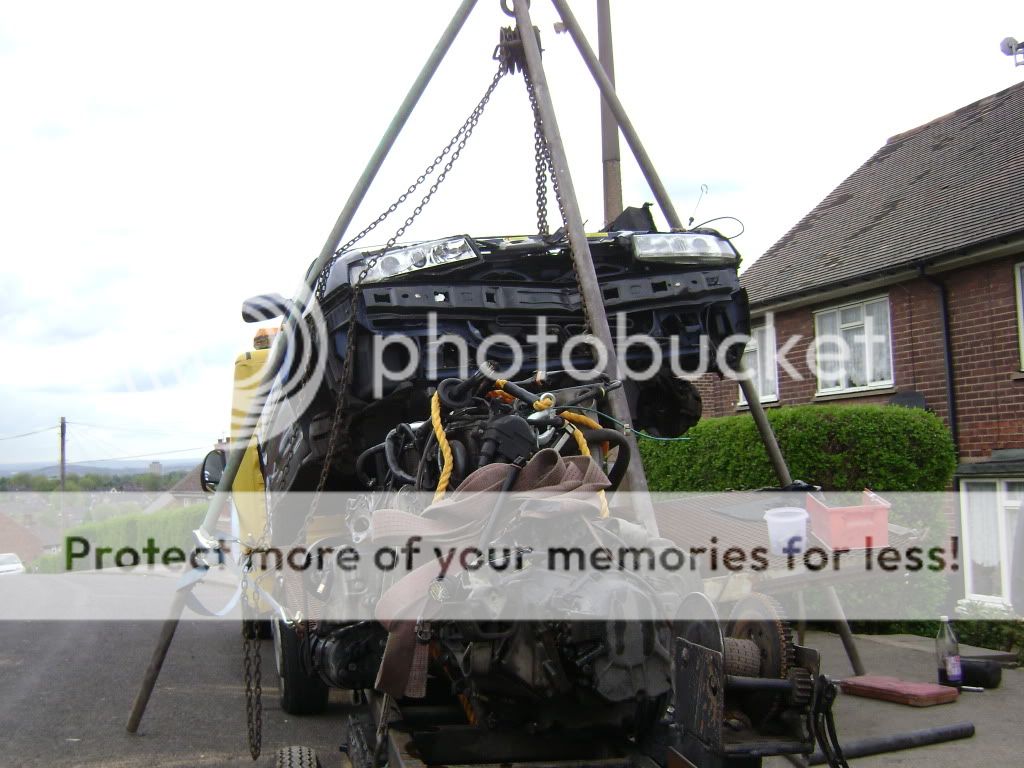

The easiest way out is to drop the engine out from bellow so you will need to get the car high in the air and attach a hoist to the engine so that you can remove the subframe



Once the engine is secure you can remove the engine mounting bolts 2 15mm o/s 2 15mm n/s and 2 17mm bottom rear mount then the subframe bolts 4 17mm and 2 18mm be careful not to drop the subframe on your head LOL

Now lower the engine and raise the car and its out  :)
