Author Topic: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6  (Read 27274 times)

0 Members and 1 Guest are viewing this topic.

V Mad

  • Guest
  • Trade Count: (0)
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #15 on: June 02, 2008, 11:08:17 AM »
Thanks for taking the time to post details of your procedure.  I didnt know that you could dismantle these tappets because I was misled by the 'H' manual that said they cannot be dismantled!!

I have added a couple of my own suggestions here based on my experience so far.

To get the plunger out of the body, most of us would prefer not to use a hammer, so as an alternative that works, just tap the whole body sharply onto a flat block of wood a few times until the plunger is nearly out, then you can easily pull it out with your fingers or some pliers.

When I got the plunger out, I didnt find much muck in there, but I noticed that if you look into the plunger (wash oil away in petrol first), there is a small ball bearing. If you depress this with a thick wire tool, a lot of sludgy oil comes out, and unless you do this, the sludge may be difficult to shift as the ball is spring loaded and seals the sludge inside.  Immerse the plunger ino some petrol, and pump the ball bearing a few times to clean it out.

Thanks again, and I hope my bit helps to improve the effectivenss of your procedure.

Offline ClubCalibra

  • Administrator
  • Trade Count: (0)
  • *
  • Posts: 5070
  • Respect 5
  • Gender: Male
    • Other Brand
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #16 on: June 28, 2008, 13:03:32 PM »
Great guide mate, good detail and pictures - 169 shop credits rewarded.

Topic moved to FAQs.
* Click Here to get your ClubCalibra Window Stickers!!
* Click Here for CHEAPER CAR INSURANCE through ClubCalibra.com!
* Click Here to add your Member Pin to our map!!!
* Click Here to add your car!

Offline Bad Kid

  • Trade Count: (17)
  • Calibra Pro
  • Posts: 613
  • Respect 10
  • Gender: Male
    • Calibra B204 Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #17 on: June 28, 2008, 15:31:06 PM »
Cheers Ash!
NURBURGRING CHALLENGE :-D

Offline Jimmy680

  • Trade Count: (1)
  • Calibra Expert
  • Posts: 2297
  • Respect 0
  • Gender: Male
    • Cally 16v Redtop
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #18 on: March 08, 2009, 14:43:42 PM »
Great guide chav, I just finshed doing mine, I didn't bother with a hammer, I just used a pair of maul grips and they came out easy, cheers

Offline Martin.

  • Trade Count: (0)
  • Calibra Expert
  • Posts: 2590
  • Respect 1
  • Gender: Male
    • Cally 16v Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #19 on: May 23, 2010, 22:31:53 PM »
Nice guide!
I cleaned my lifters today with the help of this!
May I add,...If your against hitting the lifter with a hammer use a second piece of MDF on top as I did!

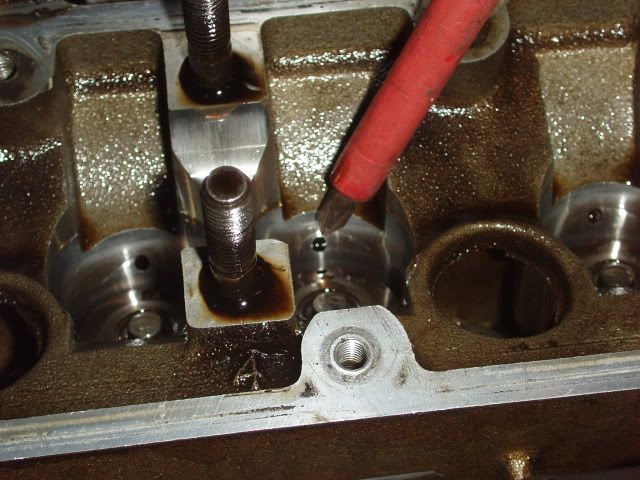

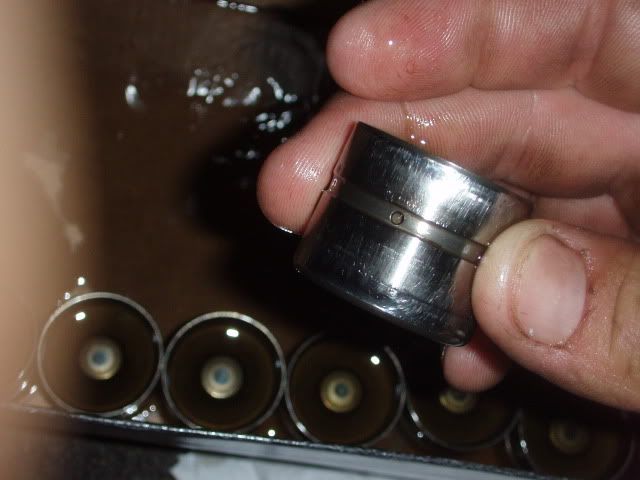

And when re-fitting them note that there is a small hole in the lifter (oil way) that according to the Haynes manual needs to line up(well NR as dame it) with the oil hole seen in the pics bellow!


Official Turbo register
http://www.clubcalibra.com/index.php?topic=34838.msg452964#msg452964


I have not failed. I've just found 10,000 ways that won't work.

Offline Bad Kid

  • Trade Count: (17)
  • Calibra Pro
  • Posts: 613
  • Respect 10
  • Gender: Male
    • Calibra B204 Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #20 on: May 23, 2010, 22:40:23 PM »
Good pics Martin! You've been busy lately haven't you with one thing and another!
NURBURGRING CHALLENGE :-D

Offline carl

  • Trade Count: (0)
  • Calibra Mentor
  • Posts: 11731
  • Respect 1
  • Gender: Male
    • Cally 16v Redtop
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #21 on: May 23, 2010, 22:44:39 PM »
Nice guide!
I cleaned my lifters today with the help of this!
May I add,...If your against hitting the lifter with a hammer use a second piece of MDF on top as I did!

And when re-fitting them note that there is a small hole in the lifter (oil way) that according to the Haynes manual needs to line up(well NR as dame it) with the oil hole seen in the pics bellow!



when i done mine i just pulled the pistons out with a pair of pliers, and i would also recommend lining the wholes up....as i didn't, and they tapped like f*ck for something lke 20 mins :D
bodybuilding thread! the thread for winners!
http://www.clubcalibra.com/index.php?topic=34651.msg449718#msg449718
**Carl's calibra project**
http://www.clubcalibra.com/index.php?topic=34701.msg450951#msg450951
You argued with an idiot, I brought you down to my level and I beat you with experience.

Offline Martin.

  • Trade Count: (0)
  • Calibra Expert
  • Posts: 2590
  • Respect 1
  • Gender: Male
    • Cally 16v Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #22 on: May 23, 2010, 22:49:26 PM »
[quote author=Bad Kid
Official Turbo register
http://www.clubcalibra.com/index.php?topic=34838.msg452964#msg452964


I have not failed. I've just found 10,000 ways that won't work.

angus346

  • Guest
  • Trade Count: (0)
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #23 on: May 23, 2010, 22:55:29 PM »
if doing something like this for the first time what is the potential for damage/disaster. also how difficult is it to set the timing again

Offline Bad Kid

  • Trade Count: (17)
  • Calibra Pro
  • Posts: 613
  • Respect 10
  • Gender: Male
    • Calibra B204 Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #24 on: May 23, 2010, 23:06:43 PM »
if doing something like this for the first time what is the potential for damage/disaster. also how difficult is it to set the timing again

Tappets are easy man, it's the timing thats hard(er)

If you take your time and turn the engine over by hand when you're done, you dont run much risk of damage! Just give it 2 full rotations by hand, check the tensioner and you're sorted. If you want to start a thread as you go along im sure you'll get plenty of help and advice :)
NURBURGRING CHALLENGE :-D

angus346

  • Guest
  • Trade Count: (0)
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #25 on: May 23, 2010, 23:12:27 PM »
[quote author=Bad Kid

Offline Martin.

  • Trade Count: (0)
  • Calibra Expert
  • Posts: 2590
  • Respect 1
  • Gender: Male
    • Cally 16v Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #26 on: May 23, 2010, 23:15:08 PM »
cheers buddy. definitly something i'd attempt for the experience and as you say there is no shortage of help on here. i love this site ;D

You can say that again!
90% of the work i've done to my car has come from advice off this site!
Official Turbo register
http://www.clubcalibra.com/index.php?topic=34838.msg452964#msg452964


I have not failed. I've just found 10,000 ways that won't work.

Offline GreddRob

  • Trade Count: (0)
  • Calibra Expert
  • Posts: 1875
  • Respect 0
  • Gender: Male
    • Cally 16v Ecotec
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #27 on: August 01, 2010, 16:58:56 PM »
Is this the same for XEV tappits?
M&R

Offline Bad Kid

  • Trade Count: (17)
  • Calibra Pro
  • Posts: 613
  • Respect 10
  • Gender: Male
    • Calibra B204 Turbo
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #28 on: August 01, 2010, 19:15:22 PM »
Is this the same for XEV tappits?

Yes mate :)
NURBURGRING CHALLENGE :-D

Offline GreddRob

  • Trade Count: (0)
  • Calibra Expert
  • Posts: 1875
  • Respect 0
  • Gender: Male
    • Cally 16v Ecotec
Re: Guide to Cleaning Hydraulic Lifters (Tappets) XE/LET & V6
« Reply #29 on: August 01, 2010, 19:24:31 PM »
[quote author=Bad Kid
M&R
